Custom SVG Icons

Booklore lets you upload custom SVG icons to use with libraries, shelves, and magic shelves. The icon picker gives you access to a built-in PrimeNG icon set, your uploaded SVG collection, and a form to add new icons by pasting SVG code. Icons from Lucide, Iconoir, Heroicons, or Feather Icons work well.

Opening the Icon Picker​

The icon picker appears whenever you're creating or editing a library, shelf, or magic shelf. Click the Choose an Icon button in the icon field to open it.

Create New Library dialog showing the Library Icon field with a "Choose an Icon" button

This opens a modal with three tabs: Prime Icons, SVG Icons, and Add SVG Icon.

Prime Icons​

The first tab shows the built-in PrimeNG icon library. Use the search bar at the top to filter by name, then click any icon to select it.

Choose an Icon modal on the Prime Icons tab, showing a search bar and a grid of built-in icons

SVG Icons​

The second tab shows your uploaded custom SVG icons. If you've added icons through the Add SVG Icon tab, they appear here as a searchable grid.

SVG Icons tab showing a search bar, a grid of uploaded custom icons, and a "Drag here to delete icon" trash zone at the bottom-right

Click any icon to select it. Use the search bar to filter by name.

To delete an icon, drag it to the "Drag here to delete icon" zone at the bottom-right. The zone highlights when you hover over it. Drop the icon to permanently delete it.

Permanent Deletion

Deleted icons cannot be recovered. You'll need to re-upload them if needed later.

Adding a New Icon​

Switch to the Add SVG Icon tab to upload a new icon by pasting its SVG code.

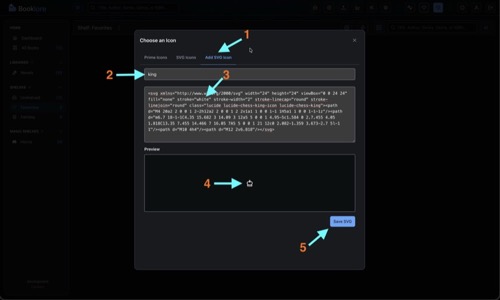

Add SVG Icon tab with a name field ("king"), an SVG code textarea with pasted content, a live preview showing the rendered icon, and a Save SVG button

  1. Name your icon in the text field. Use lowercase with hyphens or underscores (e.g., chess-king). Only letters, numbers, hyphens, and underscores are allowed, up to 255 characters.

  2. Paste the SVG code into the textarea. Copy the full <svg>...</svg> markup from your icon source.

    <svg xmlns="http://www.w3.org/2000/svg" width="24" height="24"
         viewBox="0 0 24 24" fill="none" stroke="white"
         stroke-width="2" stroke-linecap="round" stroke-linejoin="round">
      <path d="M4 20a2 2 0 0 1 2-2h12a2 2 0 0 1 2 2v1a1 1 0 0 1-1 1H5a1 1 0 0 1-1-1z"/>
      <path d="m6.7 18-1-1C4.35 15.682 3 14.09 3 12a5 5 0 0 1 ..."/>
      <path d="M10 4h4"/>
      <path d="M12 2v6.818"/>
    </svg>

  3. Check the preview. It updates automatically as you paste, showing exactly how the icon will look in Booklore.

  4. Click Save SVG. The icon is saved, and you're automatically switched to the SVG Icons tab with your new icon pre-selected.

SVG Tips
  • Include a viewBox attribute (e.g., viewBox="0 0 24 24") for proper scaling. Remove hardcoded width/height if the icon doesn't scale correctly.
  • Use fill="none" and stroke="white" for the best visual consistency with Booklore's dark theme. Hardcoded colors may not look right.
  • Maximum file size is 1MB.
  • Icons are saved to ~/booklore/data/icons/svg/ on disk.

Troubleshooting​

ProblemWhat to check
"Invalid SVG content" errorMake sure you copied the full code from <svg> to </svg>. Validate your SVG at svgviewer.dev.
Icon too large or smallAdd a viewBox attribute and remove hardcoded width/height values.
Icon invisible or wrong colorUse stroke="white" and fill="none" instead of hardcoded colors. Some icons use fill instead of stroke, so try fill="white" and stroke="none".
